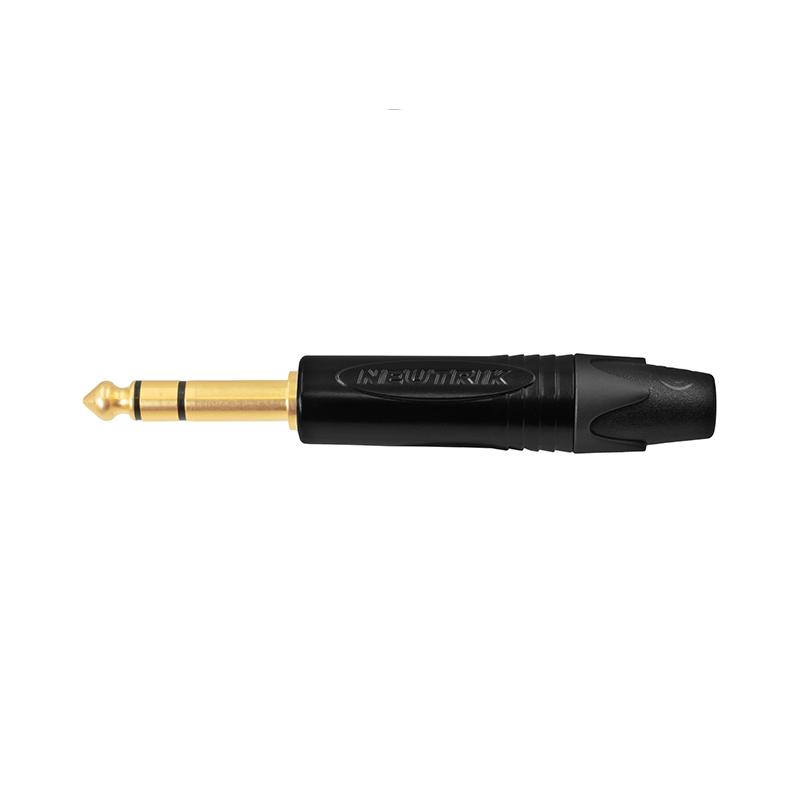

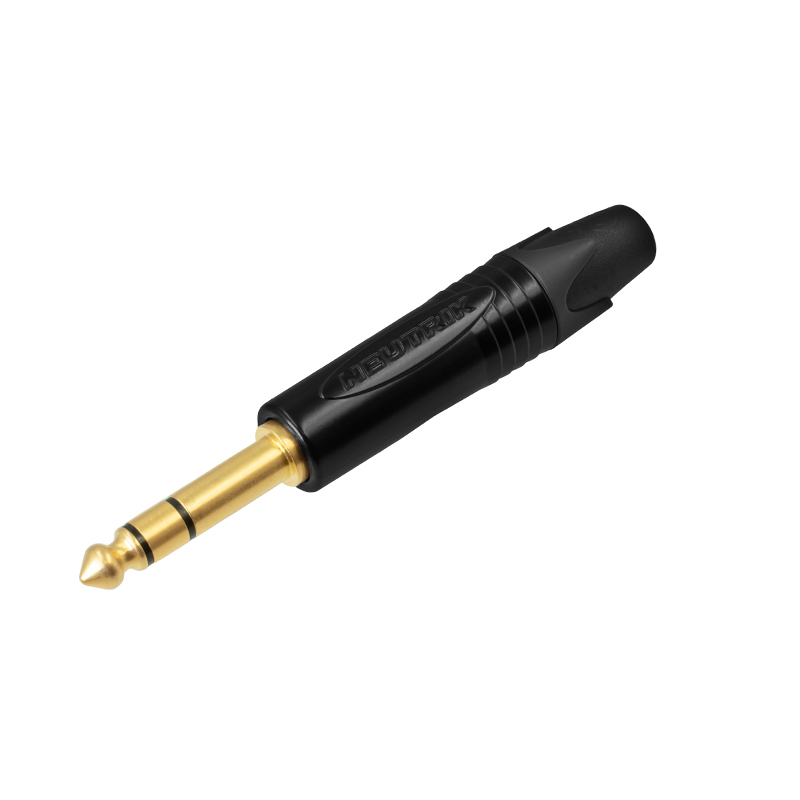

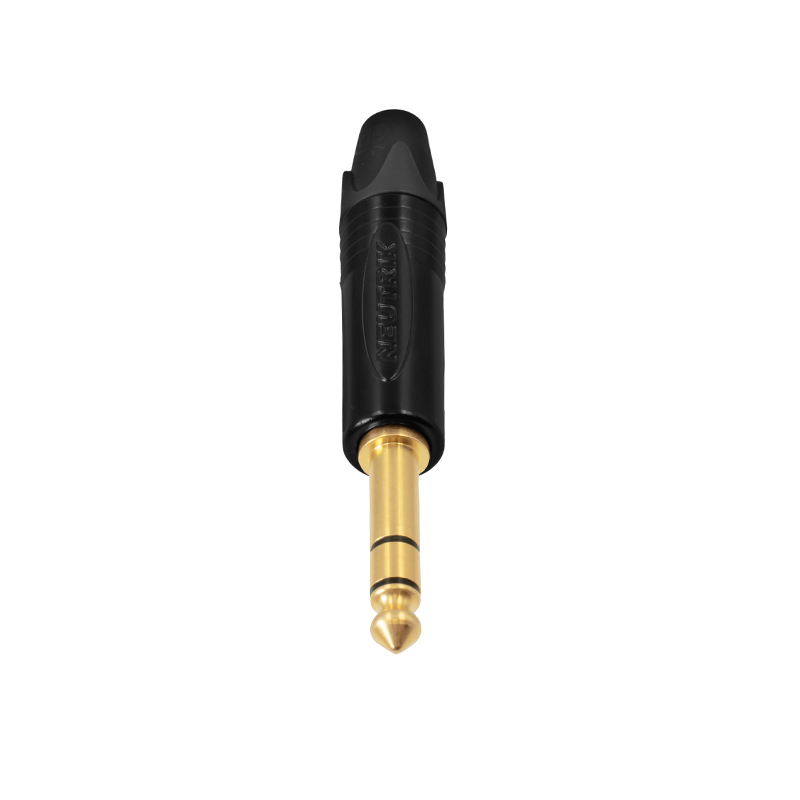

Neutrik NP3X-B | TRS (3-pole), 6.35mm (1/4") professional mono/stereo jack, black body with gold-plated contacts. The thin body with a diameter of 14.5mm allows its use in multi-channel systems with a high density of inputs - even with steps of 15.88 mm. As standard, the connector can be used with a 4 to 7mm jack cable. If you have a thicker cable, we offer as an option  BPX-L which allows the use of 7 to 8mm cable.

TRS = Tip-Ring-Sleeve.

The Neutrik NP3X-B | TRS is suitable for balanced MONO or unbalanced STEREO signals, as well as specific MIDI applications.

Balanced applications include connecting microphones to audio interfaces with TRS microphone inputs and connecting mixers to studio monitors with balanced 6.35 mm TRS inputs. Unbalanced TRS cables are also very common and are used, for example, for connecting headphones to various audio sources.

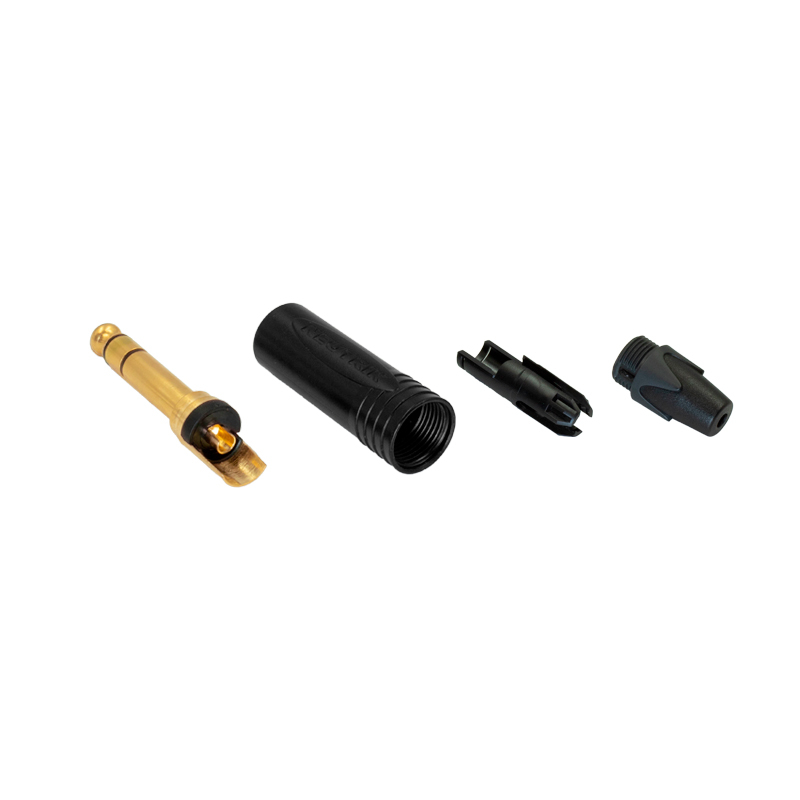

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Neutrik NP3X-B | TRS jack is suitable for various applications:

🤘Musical instruments – specifically connecting guitars, bass guitars, drum machines, and other electric instruments with a TS connector to two different amplifiers, channel-switching effects processors, and more.

🤘Audio cables – used to transmit balanced or stereo signals between various effects, mixers, audio processors, systems, and active speakers.

🤘Patch cables – short-length cables that allow the connection of multiple audio effects and processors within limited space.

🤘Active speakers – some speakers feature a TRS input to receive audio signals from the amplifier, also often in combination with an XLR connector on one end.

Features:

🤘Connector type: Male;

🤘Extremely slim design for optimal convenience during use;

🤘Robust pressure-cast housing;

🤘Outer cable diameter: 4mm to 7mm (optional 7mm to 8mm);

🤘Suitable conductor cross-section: 1mm² (18AWG);

🤘Brass contacts with gold plating;

🤘Zinc die-cast housing with black chrome finish;

🤘Temperature range: -20°C to 65°C;

🤘Lifetime: > 1000 insertions.

Applications:

TRS cables are commonly used for stereo audio applications, including headphones, speakers, amplifiers, music instruments, and audio interfaces. They are also suitable for carrying line-level signals in professional audio setups.
