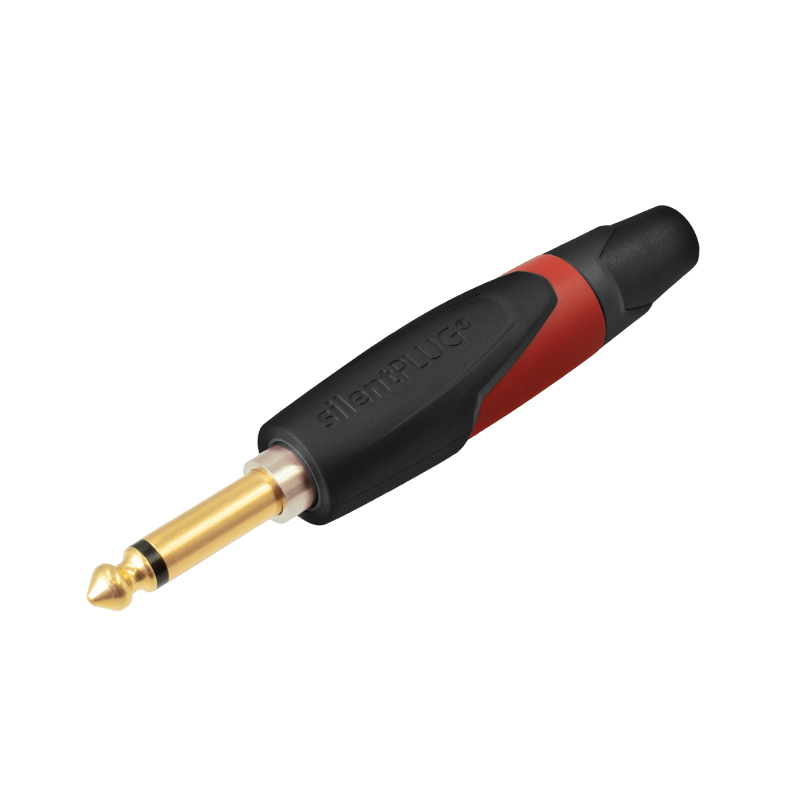

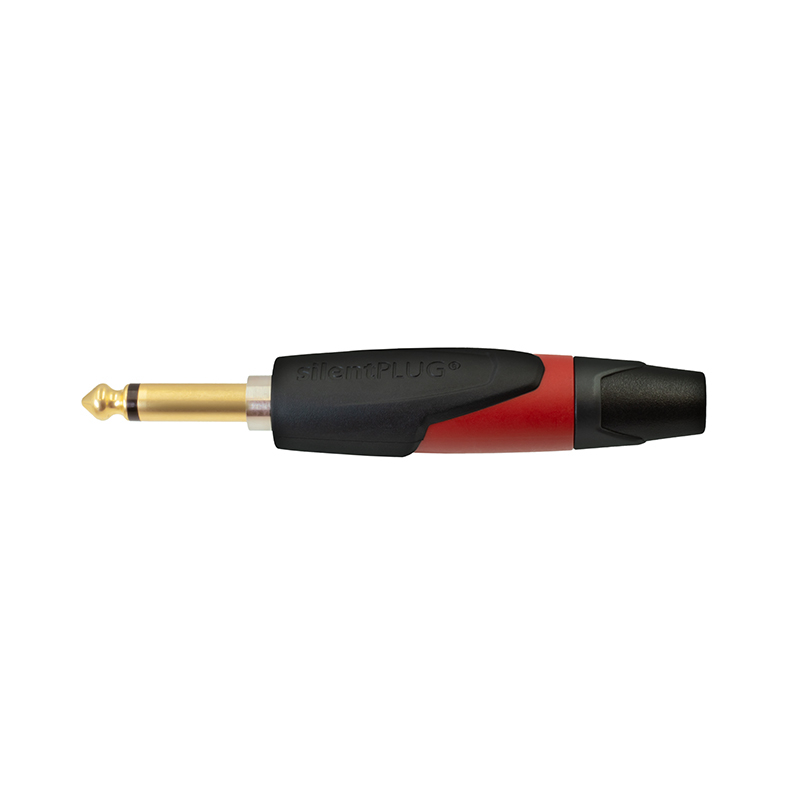

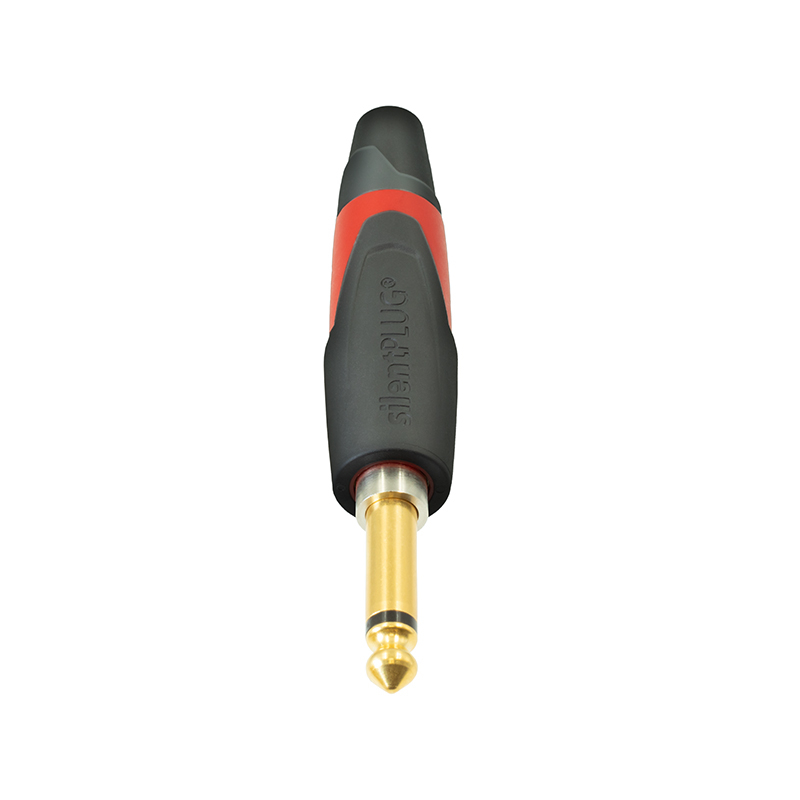

Neutrik NP2XX | TS silent (2-pole), 6.35mm (1/4") professional silent mono jack, black body with gold-plated contacts. The Neutrik NP2XX | TS silent is suitable for mono-channel applications and can only transmit an unbalanced signal. The thin body with a diameter of 14.5mm allows its use in multi-channel systems with a high density of inputs - even with steps of 15.88mm.

The technology of this TS sileng PLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 1'000 mating cycles.

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

TS (Tip-Sleeve) - These jacks transmit signal on a single audio channel only.

The Neutrik NP2XX | TS silent is suitable for MONO-channel applications and can only transmit an UNBALANCED signal.

The thin body with a diameter of 14.5mm allows its use in multi-channel systems with a high density of inputs - even with steps of 15.88mm. As standard, the connector can be used with a 4 to 7mm jack cable. If you have a thicker cable, we offer as an option  BPX-L which allows the use of 7 to 8mm cable.

The Neutrik NP2XX | TS silent jack is suitable for various applications:

🤘Musical instruments – Connecting electric guitars, bass guitars, drum machines, and other electric instruments with TS connectors to amplifiers, recording systems, etc.;

🤘Audio cables for connecting various instruments, effects, mixers, audio processors and systems;

🤘Patch cables – Short cables used to connect various sound effects and processors in tight spaces;

🤘Speakers – Some speakers have silent inputs for receiving audio signals from amplifiers;

🤘Multichannel cables (so-called "Snake cables");

Features:

🤘Connector type: Male;

🤘Avoids pops and squeals

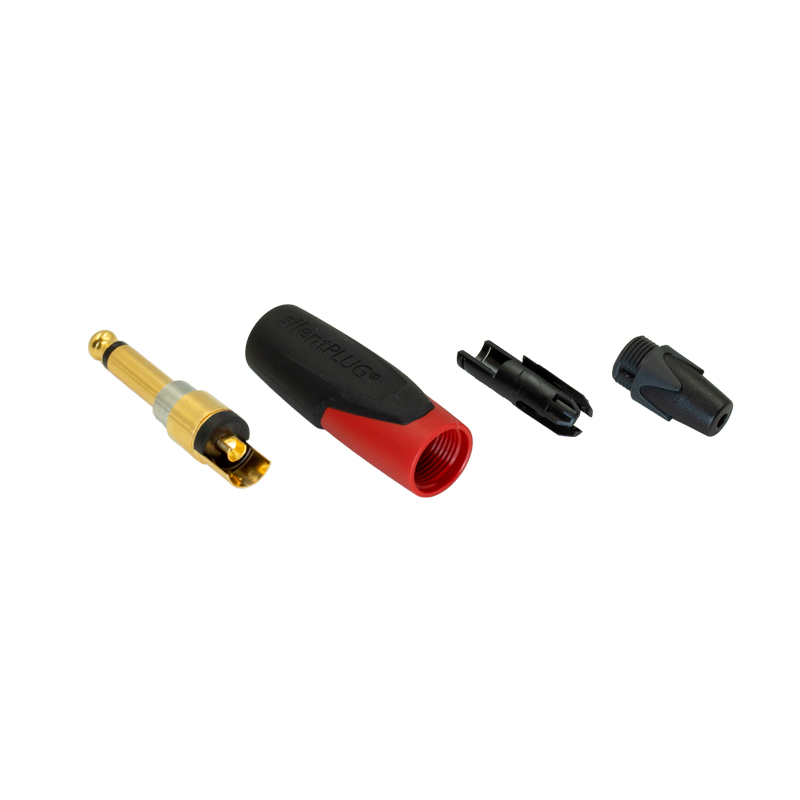

🤘Slim plug with industry proven and reliable chuck type cable strain relief;

🤘Robust pressure-cast housing;

🤘Outer cable diameter: 4mm to 7mm (optional 7mm to 8mm);

🤘Suitable conductor cross-section: 1mm² (18AWG);

🤘Hermetically sealed switching contacts

🤘Rubberized surfaces for best haptic experience

🤘Brass contacts with gold plating;

🤘Zinc die-cast housing with black chrome finish;

🤘Temperature range: -20°C to 65°C;

🤘Lifetime: > 1000 insertions.

Applications:

NP2XX silent ТS is suitable for guitar applications, audio cables, snakes, speakers, amplifiers and mixing consoles.
