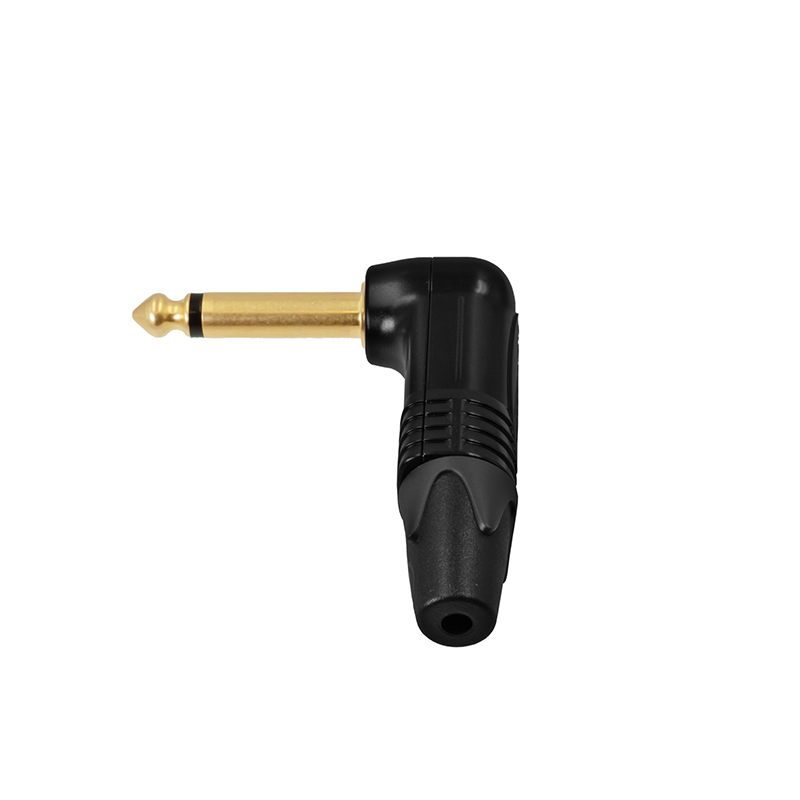

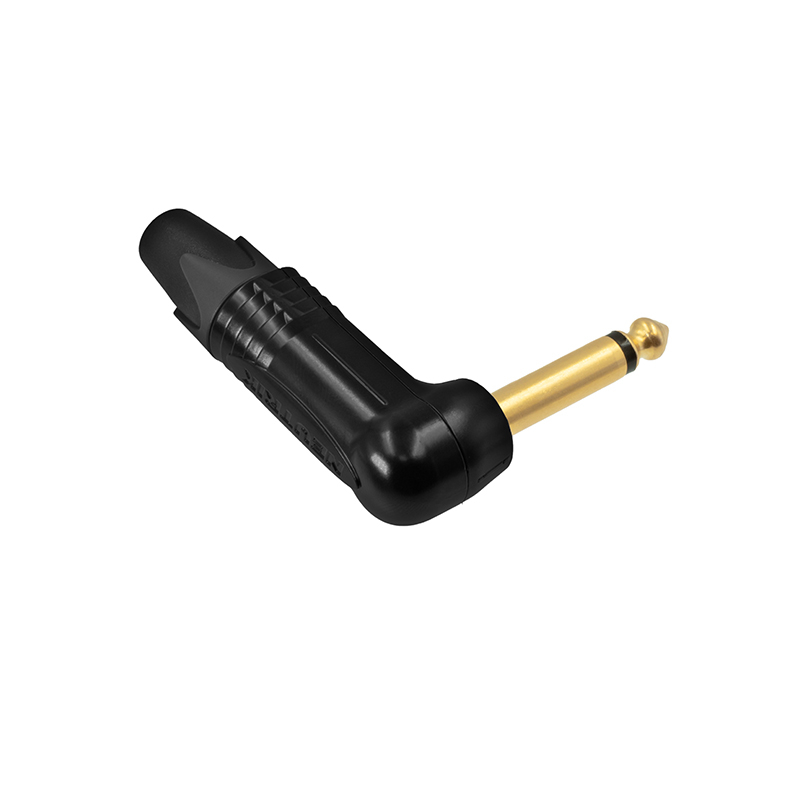

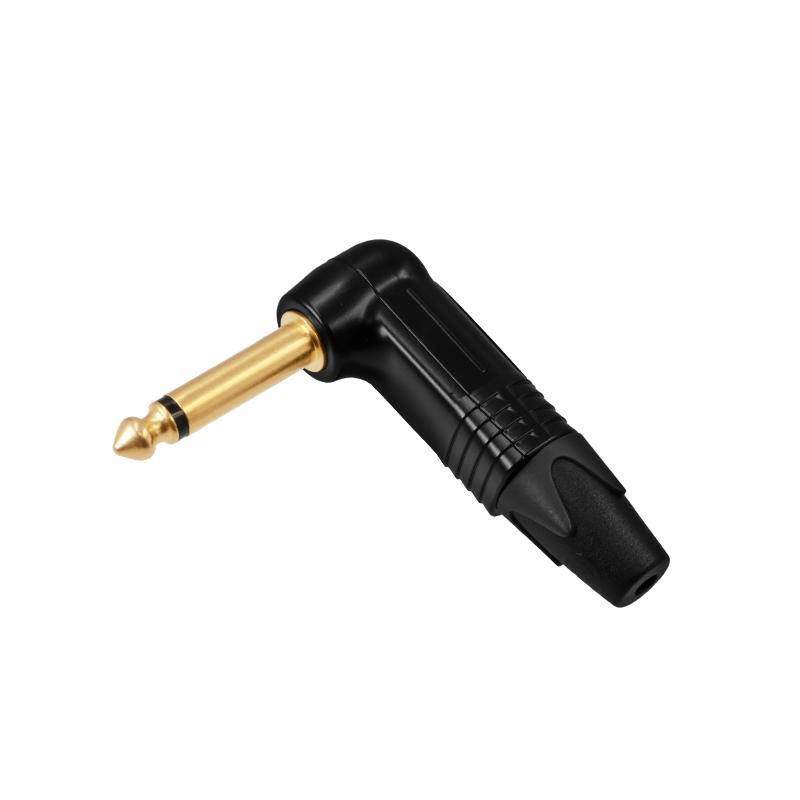

Neutrik NP2RX-B | TS 90° (2-pole), 6.35mm (1/4") professional right-angle mono jack, black body with gold-plated contacts.

TS (Tip-Sleeve) - These jacks transmit signal on a single audio channel only.

The Neutrik NP2RX-B | TS 90° is suitable for mono-channel applications and can only transmit an unbalanced signal.

The thin body with a diameter of 14.5mm allows its use in multi-channel systems with a high density of inputs - even with steps of 15.88mm. As standard, the connector can be used with a 4 to 7mm jack cable. If you have a thicker cable, we offer as an option  BPX-L which allows the use of 7 to 8mm cable.

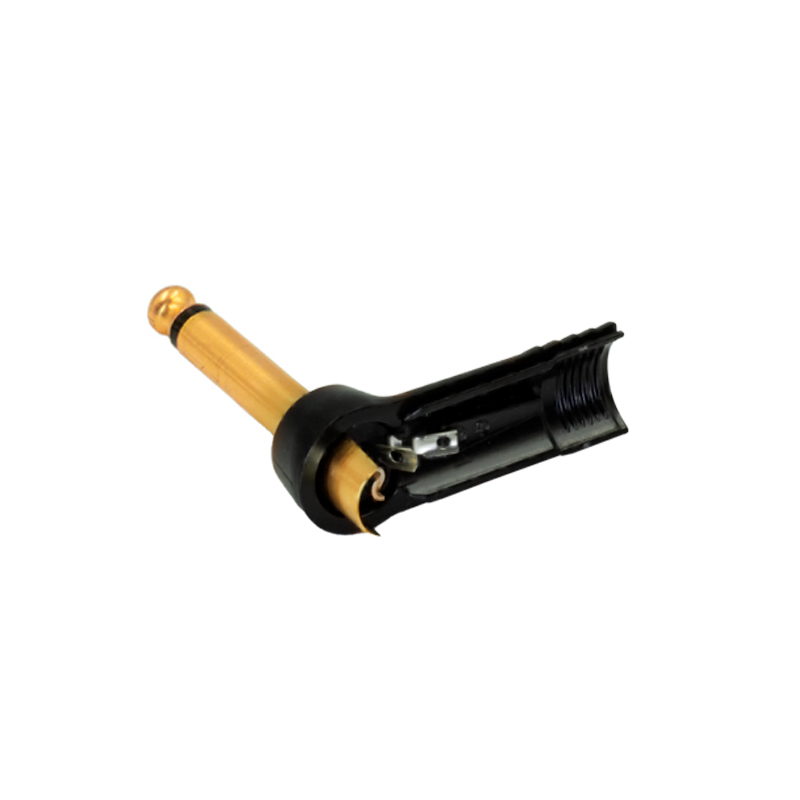

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Neutrik NP2RX-B | TS 90° jack is suitable for various applications:

🤘Musical instruments – Connecting electric guitars, bass guitars, drum machines, and other electric instruments with TS connectors to amplifiers, recording systems, etc.;

🤘Audio cables for connecting various instruments, effects, mixers, audio processors, and systems;

🤘Patch cables – Short cables used to connect various sound effects and processors in tight spaces;

🤘Speakers – Some speakers have TS inputs for receiving audio signals from amplifiers;

🤘Multichannel cables (so-called "Snake cables");

Features:

🤘Connector type: Male;

🤘Extremely slim design for optimal convenience during use;

🤘Robust pressure-cast housing;

🤘Outer cable diameter: 4mm to 7mm (optional 7mm to 8mm);

🤘Suitable conductor cross-section: 1mm² (18AWG);

🤘Brass contacts with gold plating;

🤘Zinc die-cast housing with black chrome finish;

🤘Temperature range: -20°C to 65°C;

🤘Lifetime: > 1000 insertions.

Applications:

Musical instruments, Audio processors, Recording, Live performance, Consumer electronics, etc.
