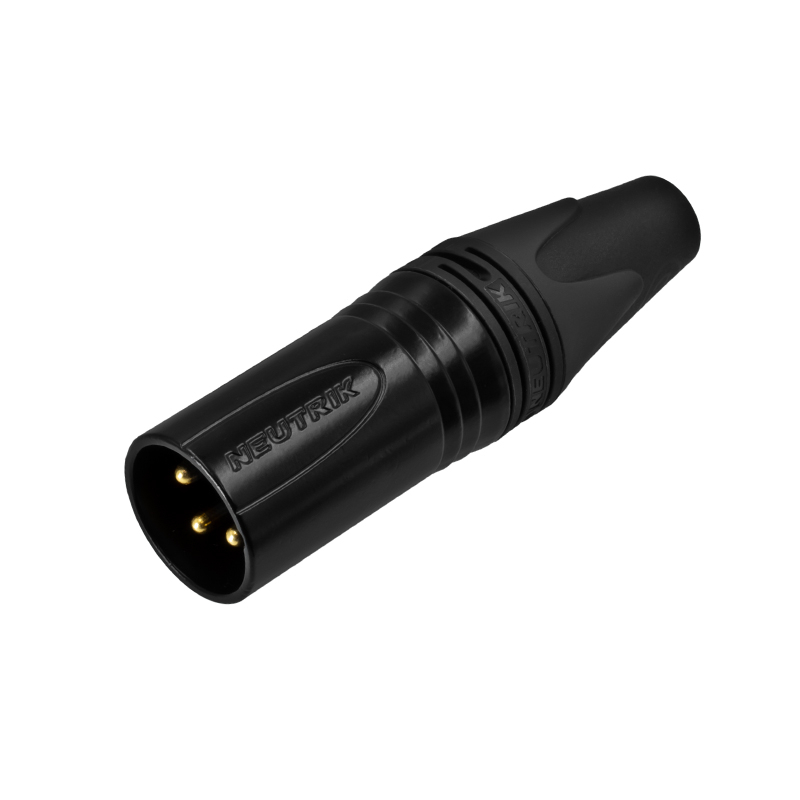

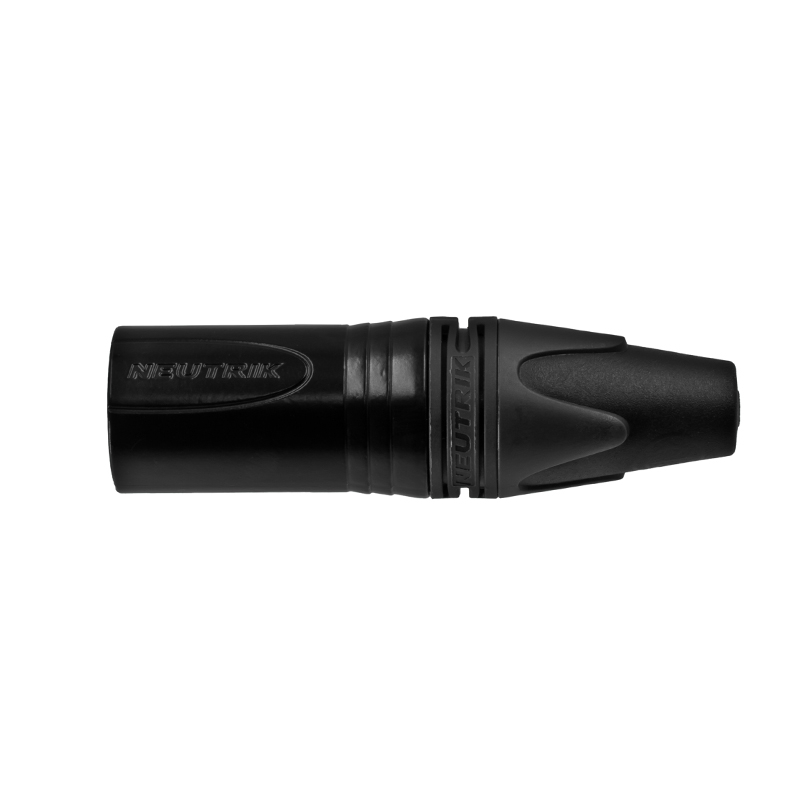

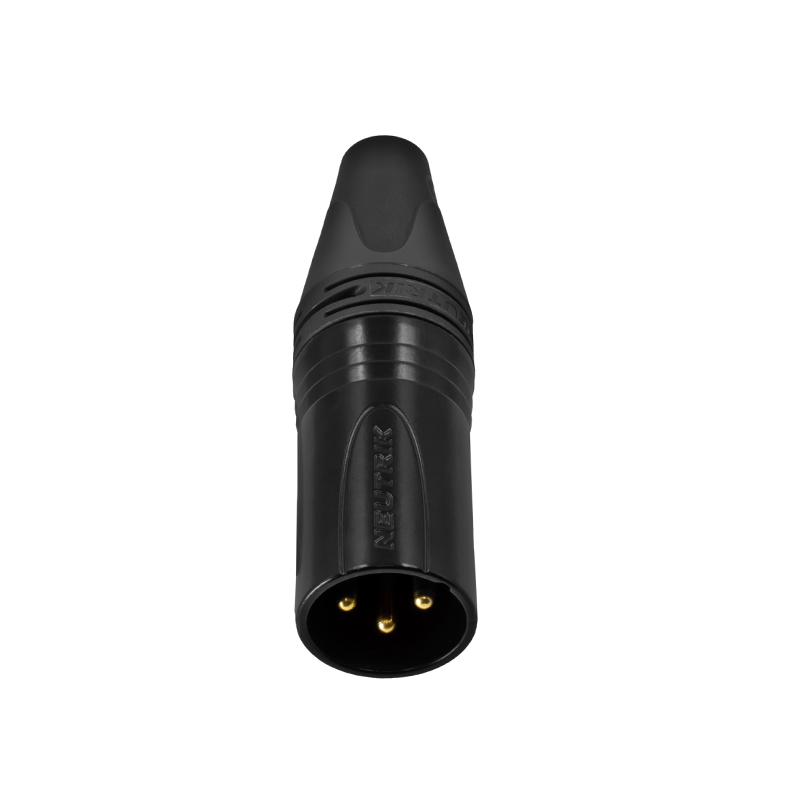

Neutrik NC3MXX-B | XLR M (3-pole) male cable connector
Previous
Next
Neutrik NC3MXX-B | XLR M (3-pole) male cable connector
Neutrik NC3MXX-B | XLR M (3-pin) female cable connector with black metal housing and gold-plated contacts. Suitable for balanced MONO or unbalanced STEREO signals. The Neutrik NC3MXX-B | XLR M is the next generation of the globally accepted standard of XLR cable connectors. The successor to the X Series offers several new features that make it more reliable.
8.90 лв.
Tax included
EU Customers with a Valid VAT Number. Read more.
Neutrik NC3MXX-B | XLR M (3-pin) female cable connector with black metal housing and gold-plated contacts. Suitable for balanced MONO or unbalanced STEREO signals.
The Neutrik NC3MXX-B | XLR M is the next generation of the globally accepted standard of XLR cable connectors. The successor to the X Series offers several new features that make it more reliable, easier to assemble, improve contact integrity, and reduce strain on the cable.
Features and advantages of the Neutrik NC3MXX-B | XLR M:
🤘Unique contact design resulting in low contact resistance and integrity in the contact area.
🤘XLR coupling with an improved solid metal latch that is larger and helps for easier handling.
🤘Enhanced strain relief component for the solder joints when the cable is bent, allowing faster and easier assembly.
🤘Color rings and rear caps are available to assist with easier identification and color coding.
🤘Durable and reliable zinc die-cast housing.
🤘Female contacts in the coupling are equipped with an integrated barrier preventing solder from entering the contact area.
🤘Additional grounded spring contacts for improved continuity of the chassis ground.
🤘Rear cap with a polyurethane seal provides excellent strain relief when bending the cable.
🤘Elegant and ergonomic design – practical and comfortable.
🤘The internal threads of the housing are well protected against damage.
🤘The cable, when equipped with two XLR connectors, can also transmit so-called phantom power (Phantom Power = 48V).
🤘Such cables and power supply are necessary for working with condenser microphones.
XLR cables are used in many different applications:
🤘Microphones – For connecting microphones during live performances as well as to various audio processors, recording consoles, interfaces, preamps, amplifiers, etc.
🤘Speakers – For balanced signal transmission from an amplifier, preamp, or other signal source equipped with a balanced XLR output to speakers with balanced XLR input.
🤘Audio Cables – For connecting various audio processors and components in the recording chain.
Neutrik NC3MXX-B | XLR M (3-pole) male cable connector
| PRODUCT | 🟪🟪🟪🟪🟪 |
|---|---|
| Name | NC3MXX-B |
| Connection type | XLR |
| Channel | mono |
| Balanced | yes |
| Gender | Male |
| ELECTRICAL | 🟪🟪🟪🟪🟪 |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | less than 10 GΩ (initial) |
| Rated voltage | less than 50V |
| MECHANICAL | 🟪🟪🟪🟪🟪 |
| Cable O.D. | 3.5 - 8.0 mm |
| Lifetime | more than 1000 cycles |
| Wiresize | max. 2.5 mm²/max. 14 AWG |
| MATERIAL | 🟪🟪🟪🟪🟪 |
| Body colour | Black |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | bronze |
| Insert | polyamide (PA66) |
| Bооt | polyurethan |
| Shell | zinc diecast (ZnAl4Cu1) |
| Shell coating | black KTL |
| Strain relief | polyacetal (POM) |
| Flammability | UL 94 V-0 |
| Protection class | IP 40 |
| ENVIRONMENTAL | 🟪🟪🟪🟪🟪 |
| Standard compliance | IEC 61076-2-103 |
| Solderability | complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Certificates | RoHS |
